Can the output of DC/DC converters connect in series?

General Applications

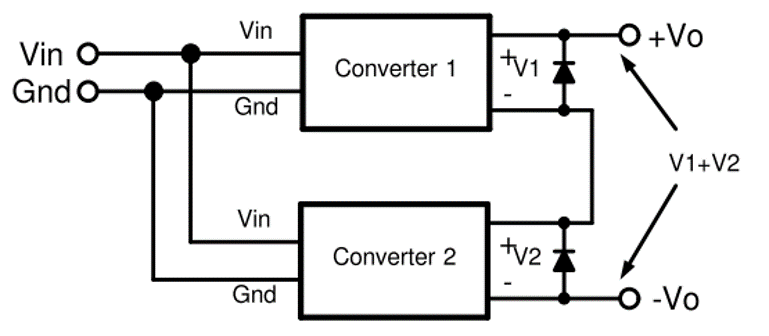

Yes. As shown in below figure. It’s a positive and a negative output voltage  connecting through two converter’s output in series. It is recommended that the  output to connect with a reverse diode. The withstand voltage of the diode needs to be higher than the total output voltage of two converters.
